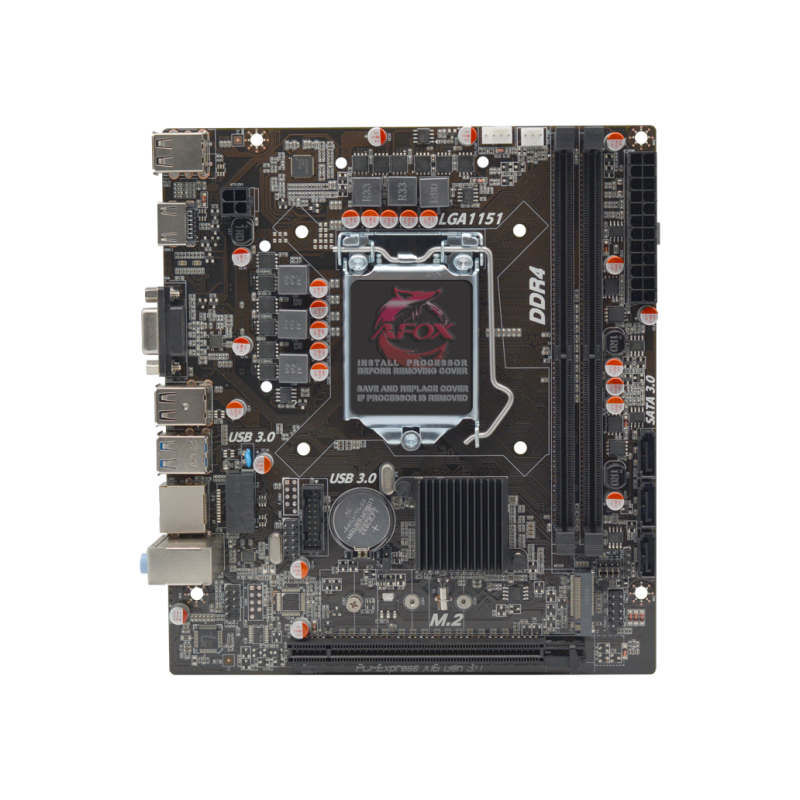

Main Afox IH310C-MA6-V2

Platform: INTEL Socket 1151
Model Name: IH310C-MA6-V2
Chipset: Intel® H310

CPU Supports: Intel Core™ i7 / Core™ i5 / Core™ i3 Processors
Supports Intel 6th, 7th, 8th and 9th Generation (CPU up to 95 watts)

FSB: 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) MHz
Memory    Dual Channel DDR4 2133 / 2400 / 2666 / 2800(O.C.)/ 3000(O.C.) MHz

Dimm: 2 x Memory Slots (Max. capacity of system memory 64GB)
Onboard Graphics: Intel® HD Graphics, PCI/PCI-E Slots    1 x PCI Express x16 3.0 slot

SATA: 3 x SATA3, 1 x M.2 (PCIe NVMe Gen3 x4 & SATA3)

Audio: Realtek 662 on board, Supports 6-channel audio-out

LAN: Realtek RTL8111 1000Mbps Ethernet on board
Back Panel I/Os    1 x HDMI Port
1 x D-Sub (VGA) Port
2 x USB 3.0 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port with LED
3 x HD Audio Jacks (Line in / Front Speaker / Microphone)

ON-Board Pinheaders/Connectors: 1 x USB 2.0 pinheader (supports additional 2 USB 2.0s), 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s), 1 x Front Panel Audio pinheader, 1 x com, 1 x DEBUG1

BIOS: UEFI BIOS
Form Factor: Micro-ATX (17 ×19cm)
Mounting: 4 mounting holes
Accessories: 1 x SATA II cable, 1 x I/O Rear Panel, 1 x User Manual, 1 x Driver CD
