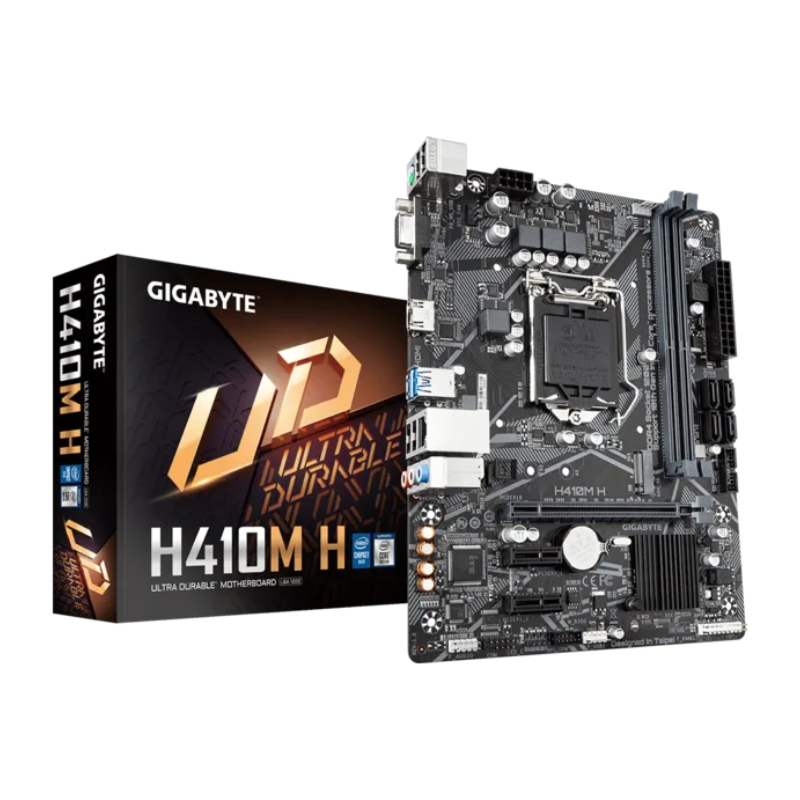

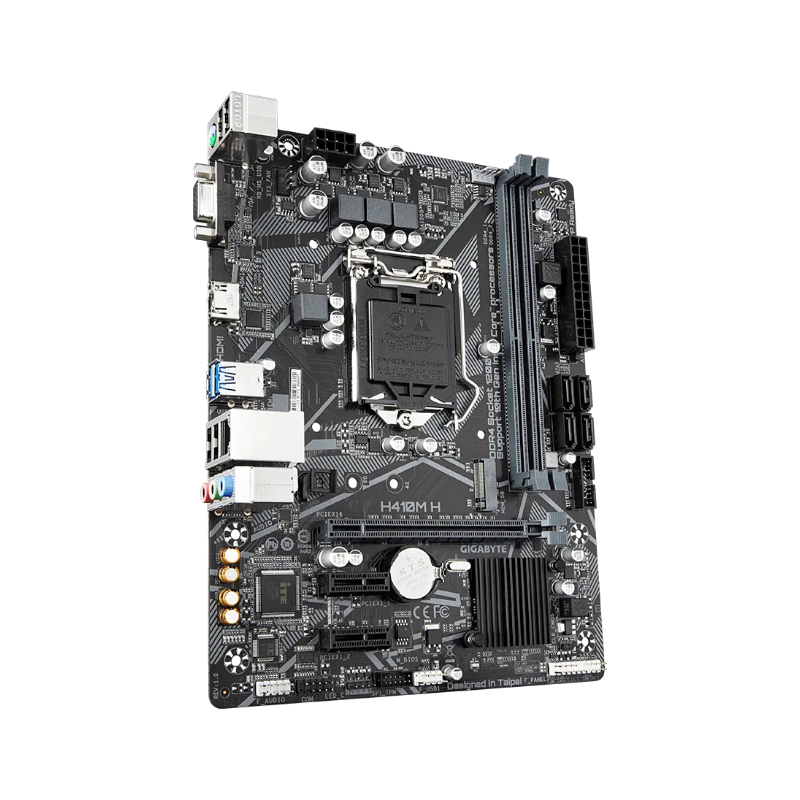

Main Gigabyte H410M-H

Sản phẩm: Bo mạch chủ

Tên Hãng: GIGABYTE

Model: H410M H

CPU hỗ trợ: Intel

Chipset: H410

RAM hỗ trợ
2 x DDR4 memory slots, tối đa 32GB
Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules

Khe cắm mở rộng
1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots

Ổ cứng hỗ trợ
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
4 x SATA 6Gb/s connectors

Cổng kết nối (Internal)
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
1 x M.2 Socket 3 connector
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

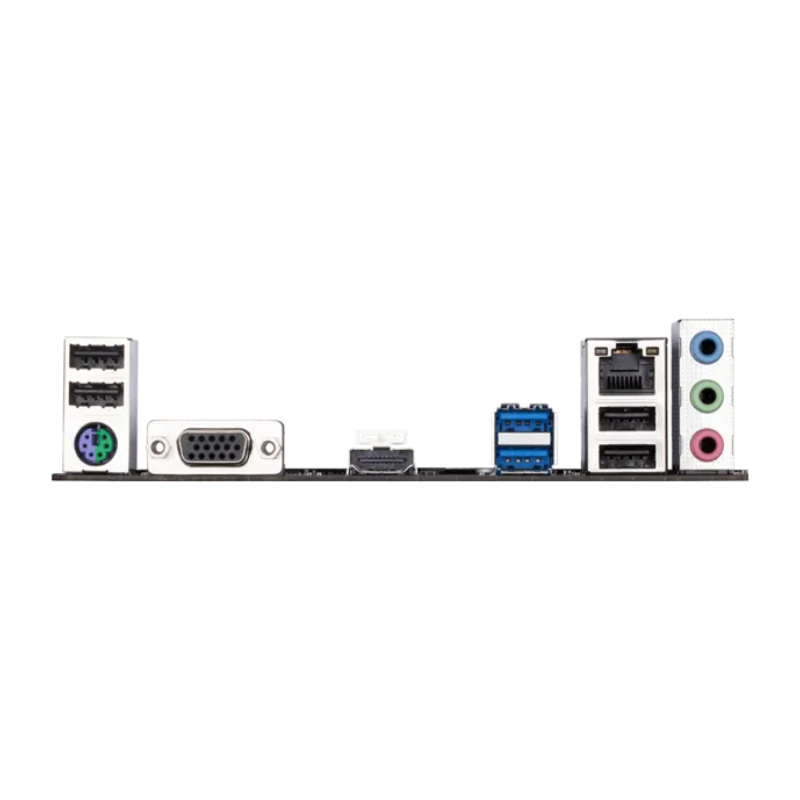

Cổng kết nối (Back Panel)
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

LAN / Wireless: Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

Kích cỡ: Micro ATX Form Factor; 22.6cm x 17.4cm

Bảo hành: 36 tháng
